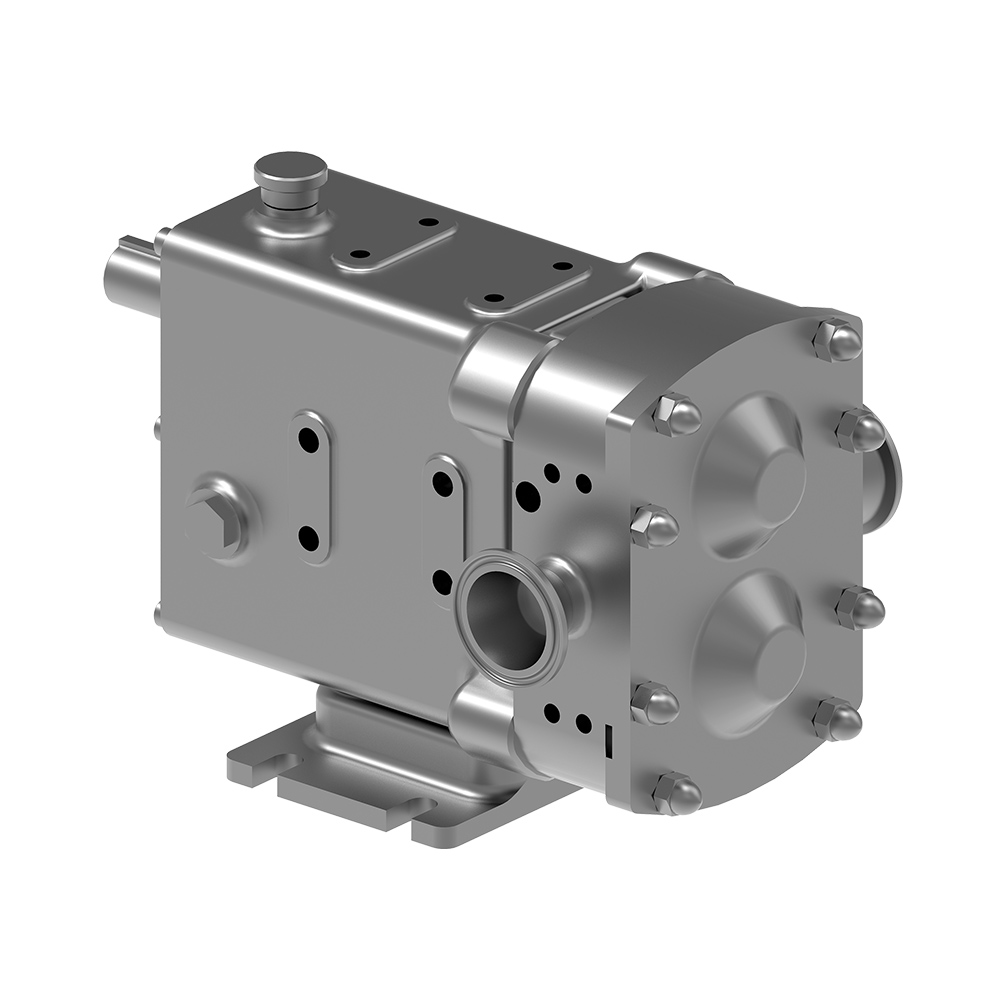

Design Features
Shaft Sealing Options | Include single & double mechanical seals, single & double O-ring seals
Porting Options | Multiple porting options cover hygienic and industrial threaded, clamp and flanges arrangements
Low Shear Pump Design | Gentle handling of delicate and shear sensitive products
Solids Handling | Will handle a wide range of products including suspended solids and abrasives (with TDC coating)
Efficiency | High volumetric efficiency on low viscosity products
Hygienic Designs | Used in a wide range of hygienic industries where cleanliness is important
Industries
Oil & Gas, Geothermal, Chemical, Petrochemical, Tank Storage, Boiler, Pulp & Paper, Palm Oil & Oleochemical, Power Plant, Boiler
Materials
PRODUCT WETTED
Rotorcase, Rotor Retainers, Front Cover:
316L stainless steel
Rotors:
Alloy 808 & 316 / 316L stainless steel
GEARBOX (GEARBOX, MOUNTING FEET & BACK PLATES)
Stainless Steel & cast iron, dependent on pump series & size
Pressure and Temperature
CAPACITY : to 450 GPM
(102 m3/h)
VISCOSITY : to 2,000,000 SSU (440,000 cSt)
PRESSURE : to 500 PSI (34 BAR)
TEMPERATURE :to +300°F (+150°C)
Size
Size 1“ – 6“
Connection
Hygienic port options:
Tri-clamp, DIN 11864, DIN 11851 Male, SMS Male (Revolution®)
Industrial port options:
ASA/ANSI 150 lb. or 300 lb. RF, DIN 2633, BSP Male, NPT Male (Revolution®)
Complete range of hygienic
clamp, screw, flange & industrial screw connections (TRA)
Tri-clamp, flanged, DIN, IMDA, NPT, BSP, etc. (TRA)
